205KPP2
205KPP2 Hex Bore Agricultural Bearing
- Cross-ref
- Cross Reference PEER: 205HPP2 (PER 205HPP2 in SKF Agri catalogue)
- Fits
- Hexagonal-shaft drive / conveyor
Agricultural & Lawn and Garden Equipment Bearings

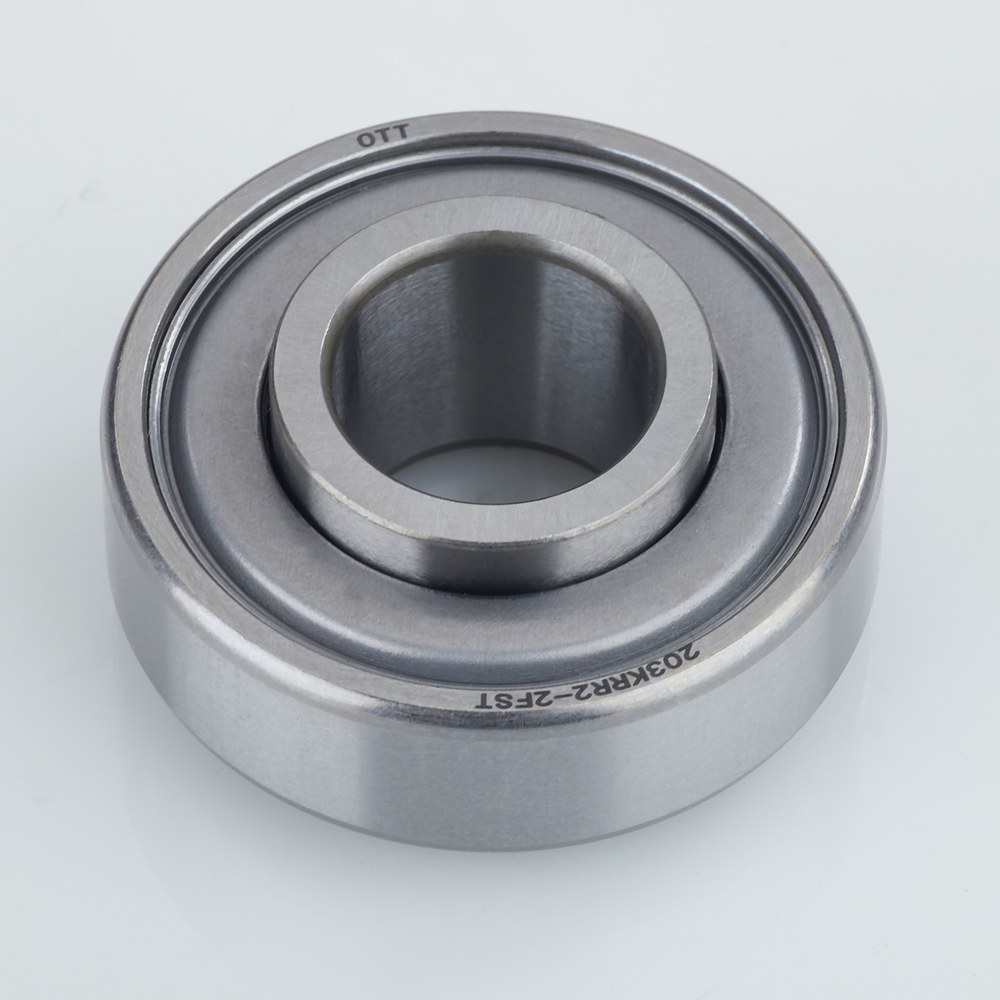

203KRR2 Round Bore Agricultural Bearing
Part No.203KRR2
OTT 203KRR2 is a single-row deep groove ball bearing with an extended inner ring and rubber-and-steel sealing elements.
Interchangeable with
- OE Reference John Deere JD9214 / AN100425; Case 149261C91; Great Plains 822-095C; New Holland 66553
- Cross Reference SKF Agri catalogue (PEER product): PER 203RRR2; PEER: 203RRR2 / BB203KRR2FD; FKL: 203KRR.AH02; Timken/Fafnir: 203KRR2; FAG: 518855; INA: 203KKR.AH02 (catalogue spelling); PFI: 203KRR2 C3; NTN: 23RRAR10
- MOQ
- 1000 pcs
- Lead time
- 30-45 days for standard orders
- Shipping
- FOB Ningbo / Shanghai
Technical data
Specifications
| Specifications | Bore: 16.256 mm; outside diameter: 40 mm; inner-ring width: 18.288 mm; outer-ring width: 12 mm. Radial clearance: C3, 0.011-0.025 mm. |
|---|---|
| Equipment Type | Planter / seeding machine |
Cross Reference
OTT 203KRR2 Round Bore Agricultural Bearing is interchangeable with the following brand part numbers:
| Brand | Part Number |
|---|---|
| OE Reference | John Deere JD9214 / AN100425; Case 149261C91; Great Plains 822-095C; New Holland 66553 |
| Cross Reference | SKF Agri catalogue (PEER product): PER 203RRR2; PEER: 203RRR2 / BB203KRR2FD; FKL: 203KRR.AH02; Timken/Fafnir: 203KRR2; FAG: 518855; INA: 203KKR.AH02 (catalogue spelling); PFI: 203KRR2 C3; NTN: 23RRAR10 |
Applications
- Wheel or conveyor shaft support; match the original mounting assembly.
Fitment note: cross-references and vehicle applications are for identification. Send us the OE number, VIN or a sample and we will confirm the exact fitment before you order.
Key Features
- 01Use the OTT drawing dimensions when selecting a replacement. Seal configuration must follow the supplied drawing.
Packaging
Available in OTT branded packaging or custom OEM packaging. Individual bearings are sealed in PE bags, packed in branded carton boxes, then palletized in wooden crates for export shipping.
Same product line
Related Agricultural & Lawn and Garden Equipment Bearings
6204RSL3
6204RSL3 Sealed Agricultural Bearing
- Cross-ref
- OE Reference Pöttinger 400524 / 400.524; Mzuri 40089; Otico 009620.00Cross Reference FKL: 6204-RSL3
- Fits
- Seeding-machine bearing; Otico assemblies 025778.04 / 015871.04
Product lines
Explore other bearing types
Wheel BearingsPre-sealed, pre-lubricated wheel bearings — Ball Type and Tapered Roller Type for passenger cars and light trucks.34 models
Wheel Bearing Repair KitsComplete repair kits — bearings, seals, snap rings, and hardware in one package.4 models- Wheel Hub UnitsPre-assembled Gen 2 & Gen 3 hub units — bolt-on installation, sealed for life, ABS-ready.5 models
Alternator BearingsHigh-speed, low-noise bearings for automotive alternators and starter motors.18 models
Request for quotation
Need 203KRR2 in volume, or a variant of it?
Share an OE or competitor number, a drawing or target dimensions and your annual volume. Samples available for qualified projects.
- MOQ
- 1000 pcs / model
- Lead time
- 30-45 days for standard orders
- Shipping
- FOB Ningbo / Shanghai
