205KPP2
205KPP2 Hex Bore Agricultural Bearing
- Cross-ref
- Cross Reference PEER: 205HPP2 (PER 205HPP2 in SKF Agri catalogue)
- Fits
- Hexagonal-shaft drive / conveyor
Agricultural & Lawn and Garden Equipment Bearings
5203KYY2 Double Row Angular Contact Planter Bearing
Part No.5203KYY2

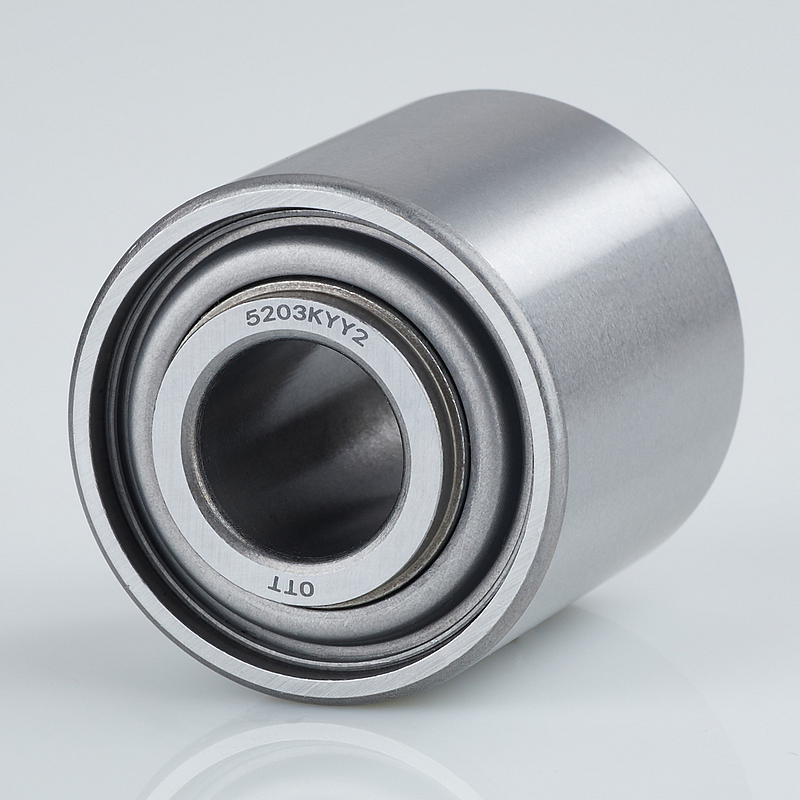

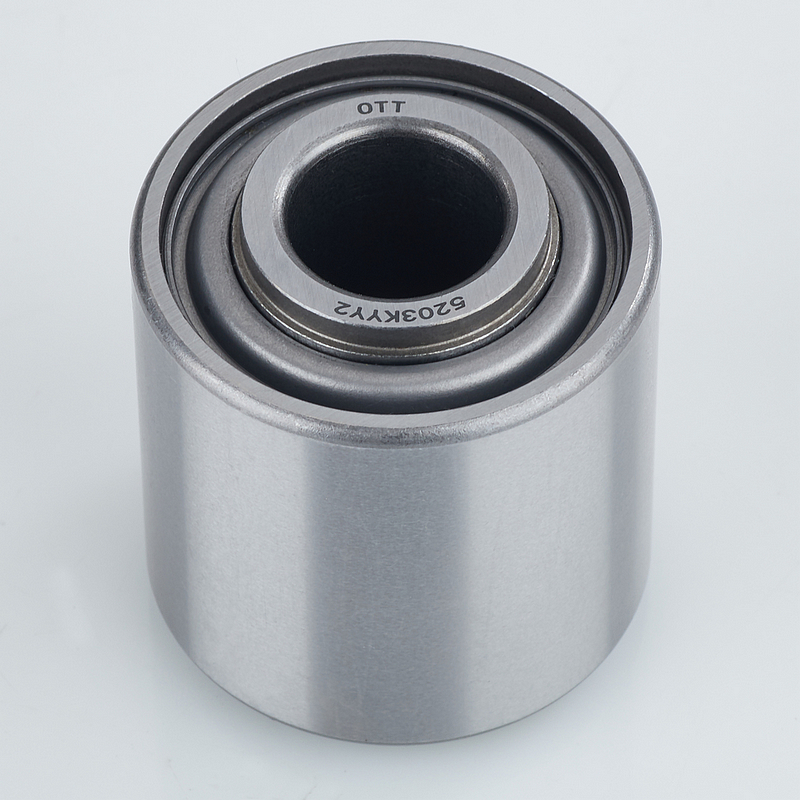

OTT 5203KYY2 is a double-row angular contact ball bearing with an extended inner ring, two steel shields and reinforced polyamide cages.
Interchangeable with
- OE Reference John Deere AN212132; Kinze GA6171; Case 324461A1; Great Plains 822-170C; Kuhn 81101640; Monosem 7140A
- Cross Reference PEER: 5203RYY2 (PER 5203RYY2 in SKF Agri catalogue); FKL: SL 5203 2T (older catalogue; check bore and ring widths; SL 5203.B-2T is a separately dimensioned variant); Timken/Fafnir: 5203KYY2; Koyo: DAC164044-2RS; PFI: 5203KYY2
- MOQ
- 1000 pcs
- Lead time
- 30-45 days for standard orders
- Shipping
- FOB Ningbo / Shanghai
Technical data
Specifications
| Specifications | Bore: 16.256 mm; outside diameter: 40 mm; inner-ring width: 44.12 mm; outer-ring width: 39.12 mm. Nominal contact angle: 30 degrees per row. Radial clearance: 0.005-0.020 mm. |
|---|---|
| Equipment Type | Planter / seeding machine |
Cross Reference
OTT 5203KYY2 Double Row Angular Contact Planter Bearing is interchangeable with the following brand part numbers:
| Brand | Part Number |
|---|---|
| OE Reference | John Deere AN212132; Kinze GA6171; Case 324461A1; Great Plains 822-170C; Kuhn 81101640; Monosem 7140A |
| Cross Reference | PEER: 5203RYY2 (PER 5203RYY2 in SKF Agri catalogue); FKL: SL 5203 2T (older catalogue; check bore and ring widths; SL 5203.B-2T is a separately dimensioned variant); Timken/Fafnir: 5203KYY2; Koyo: DAC164044-2RS; PFI: 5203KYY2 |
Applications
- Planter gauge wheel or closing wheel assembly; match the original mounting arrangement.
Fitment note: cross-references and vehicle applications are for identification. Send us the OE number, VIN or a sample and we will confirm the exact fitment before you order.
Key Features
- 01Select by the OTT dimensions and shield arrangement. Catalogue references identify related parts; they do not establish identical seals or unconditional interchangeability.
Packaging
Available in OTT branded packaging or custom OEM packaging. Individual bearings are sealed in PE bags, packed in branded carton boxes, then palletized in wooden crates for export shipping.
Same product line
Related Agricultural & Lawn and Garden Equipment Bearings
6204RSL3
6204RSL3 Sealed Agricultural Bearing
- Cross-ref
- OE Reference Pöttinger 400524 / 400.524; Mzuri 40089; Otico 009620.00Cross Reference FKL: 6204-RSL3
- Fits
- Seeding-machine bearing; Otico assemblies 025778.04 / 015871.04
Product lines
Explore other bearing types
Wheel BearingsPre-sealed, pre-lubricated wheel bearings — Ball Type and Tapered Roller Type for passenger cars and light trucks.34 models
Wheel Bearing Repair KitsComplete repair kits — bearings, seals, snap rings, and hardware in one package.4 models- Wheel Hub UnitsPre-assembled Gen 2 & Gen 3 hub units — bolt-on installation, sealed for life, ABS-ready.5 models
Alternator BearingsHigh-speed, low-noise bearings for automotive alternators and starter motors.18 models
Request for quotation
Need 5203KYY2 in volume, or a variant of it?
Share an OE or competitor number, a drawing or target dimensions and your annual volume. Samples available for qualified projects.
- MOQ
- 1000 pcs / model
- Lead time
- 30-45 days for standard orders
- Shipping
- FOB Ningbo / Shanghai
